AI scientific illustration in 2026: figures for papers, posters and grants that don't look generated

What 'AI scientific illustration' actually means in 2026

AI scientific illustration is the use of generative models to draft, render or annotate figures for research output: papers, posters, grants, theses and talks. The useful definition narrows that further. A figure has to be correct, original and reproducible. Text-to-image generation fails all three: it averages training data of mixed quality, produces stochastic outputs that you cannot regenerate identically, and learns from copyrighted figures with fuzzy provenance. Sketch-first and AI-assisted refinement workflows preserve all three properties because the scientific content originates with the author.

The other framing that matters is who the figure is for. A figure for an internal lab meeting tolerates more AI involvement than one going to Nature. The model's job, in any of these settings, is the same: take a structurally correct input and improve the rendering, layout, labelling or colour. It is never to decide what a pathway looks like, where an arrow goes, or which residues sit in an active site.

Why generic image models fail scientific figures

Models like DALL-E 3, Midjourney v7 and Stable Diffusion XL were trained on billions of web images. The web contains a vast amount of mis-labelled or simplified scientific imagery, AI-recycled figures, and species-mixed anatomy. The model averages all of it and rewards plausibility, not accuracy. A 2024 npj Digital Medicine paper testing four leading text-to-image models on standard anatomy prompts found anatomically faithful outputs in under 15% of cases. For molecular structures the failure rate is higher still: stereochemistry, ring saturation and bond orders are routinely wrong.

There is a second problem that matters more for science than for medicine: reproducibility. The same prompt to the same model on the same day will not produce the same image, and the seed control most image APIs expose is unreliable across model updates. A figure you cannot regenerate from a published prompt is a figure a reviewer cannot audit. That alone disqualifies pure text-to-image for any methods-grade figure.

Which figure types AI scientific illustration genuinely helps with

Across two years of regular use in academic labs, a stable shortlist has emerged. AI accelerates schematics, conceptual diagrams, draft posters and figure polish. It does not help, and often hurts, on data plots, histology, microscopy, structural biology and molecular structures, where mature non-AI tools already exist and produce ground-truth output. The table below maps figure types to the tool class that earns its place.

Journal policy on AI figures: what 2026 actually requires

Most major journals updated their AI policies between 2023 and 2025 and the consensus has firmed up. The ICMJE 2023 recommendations require authors to disclose any generative AI used in figures and to take full responsibility for accuracy. Nature does not currently accept fully AI-generated figures in submitted manuscripts but allows AI-assisted refinement of human-drawn artwork. JAMA and the BMJ allow disclosed AI use. Science and Cell broadly mirror the Nature position. Assume disclosure is required unless the journal explicitly says otherwise, and check the target journal's instructions for authors before submission.

A reproducible workflow for AI-assisted scientific figures

This is the workflow used most often by labs that have settled on AI as part of their figure pipeline rather than a one-off experiment. It assumes one figure for a paper or grant. Total time per figure once you've used it a few times: around 30 minutes for a schematic, longer for a multi-panel figure.

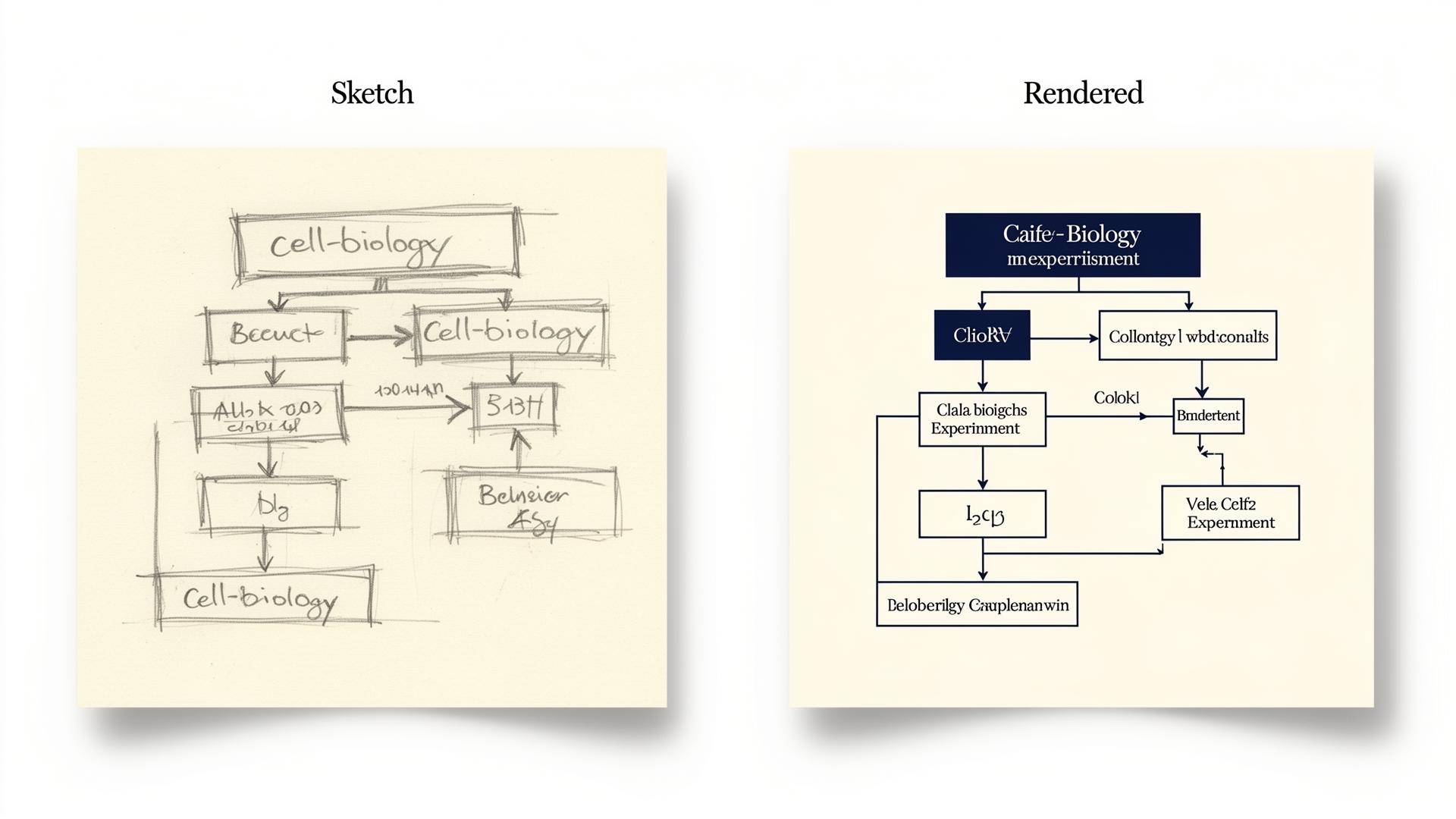

1. Sketch the figure on paper or a tablet. Mark every structure, label, arrow and panel boundary. Treat this as the scientific content of the figure.
2. Render the schematic with a sketch-first AI tool (Angiosome or similar) or assemble it from a vector library (BioRender, Mind the Graph, SciDraw). Aim for two iterations: rough render, then refined with corrected labels.
3. Compose the final figure in your vector tool of choice (Illustrator, Inkscape, Figma). Add typography, scale bars, panel letters and any data overlays.
4. Export at journal resolution: 300 dpi minimum for raster, native SVG/EPS where the journal accepts vector. Most journals now specify 300 dpi for line art and 600 dpi for combined figures.
5. Archive provenance: source sketch, tool name and version, prompts used, intermediate renders. Add a one-line disclosure to the figure legend or methods section: 'Figure X was drafted using [tool, version]. Final composition by [author]. All scientific content verified by the authors.'

Posters and grants: where AI saves the most time

Conference posters and grant figures are the highest-leverage use case for AI scientific illustration because the audience is generous about aesthetic and the figures are usually conceptual, not methods-grade. A typical poster needs an overview schematic, a results panel and a model figure. AI can draft the schematic and the model figure in under an hour combined; the results panel comes from your data and is not an AI problem. Grant figures are similar: a methods overview and a conceptual model, both of which an AI-assisted workflow handles well.

BioRender and the close alternatives, ranked honestly

BioRender remains the default for biological pathway figures because its icon library is the largest in the category (around 50,000 icons across 30+ disciplines in 2026) and the drag-and-drop workflow is genuinely fast. Its weaknesses are price (Premium $39/month billed annually, Pro $79/month), a free tier that explicitly bans publication use, and a house style instantly recognisable to reviewers. Mind the Graph is the closest like-for-like competitor at $10–$25/month with attribution-permitted free publication. Inkscape combined with SciDraw and Reactome icons reaches publication quality at zero recurring cost but takes roughly 3x longer per figure while you learn the vector workflow. The deeper comparison is in the biorender-alternatives guide.

What AI scientific illustration still does badly

• Histology and microscopy. Use real images from your lab, Pathology Outlines, or open repositories. Never let AI generate tissue.
• Molecular structures with stereochemistry, ring saturation or bond orders. Use ChemDraw or RDKit-rendered structures from SMILES.
• Crystallography and structural biology. Render from coordinate files in PyMOL or ChimeraX. The figures are reproducible from the PDB ID alone.
• Reproducing a specific published figure's style as your own. Both an originality and a copyright problem; don't.
• Generating data plots from numbers. Use ggplot2, matplotlib, or Plotly. The plot script is part of your reproducibility record.
• Anything where a small visual error changes the scientific claim (active-site geometry, gating positions, electrophysiology traces). The category of figure where 'plausible-looking' is most dangerous.
